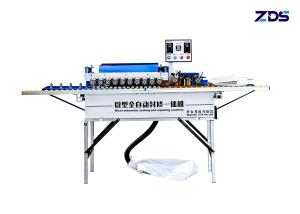

Small fully automatic edge banding machine with vacuum function for woodworking decoration
Product Features
• Guided multi-function operator interface
Pneumatic control, no manual adjustment, easy to use, no need for special job skills training
• Full functioning
The machine can realize multiple processes such as gluing and welting, flushing, flushing, rough trimming, fine trimming, polishing, etc., and forming at one time.
• Automatic trimming
Can automatically break the belt, double-sided glue, light and portable, automatic board feeding, dual-use curve or straight line, stepless speed regulation, user-friendly design, small footprint
• Save cost for you
Only international common parts are used for motors and accessories, which reduces the high-cost maintenance costs caused by special devices, and at the same time reduces the procurement cost of later accessories
| Voltage | 220v |
| Suction power | 1200w |
| Belt power | 25w |
| Transmission power | 60w |
| Polishing power | 800w |
| Trimming power | 800w |
| Conveying speed | 0-15m/min |
| Edging speed | 0-6m/min |
| Edge height | 10-60mm |
| Edge thickness | 0.3-3mm |
| Overall size | 120*54*72cm |
| Packing size/weight | 132*53*63/81kg |
The newly upgraded vacuum cleaner makes the working environment cleaner
Operation panel
The operation panel is equipped with function buttons such as power supply, motor, stepless speed regulation, etc., which is easy to understand and easy to operate.
Edge banding rollers are upgraded to copying rollers
The pressing wheel adopts a copying wheel, no manual pressure regulating wheel is required for trimming, and it is automatically adjusted. With a telescopic cantilever, large plates can be completed at one time
The table can be rotated 360° at will, and can be operated freely for curves or special-shaped edge sealing
